For Sale: Sony FHZ700L with VPLL-Z4011
Laser Video Projector 3LCD WUXGA
Key Details
Condition: Used
Category: Video Projector
Published: 08-05-2025
Views: 218
Listed By: Project italia srlPREMIUM DEALER
Location: Italy
Listing ID: 34827
Description

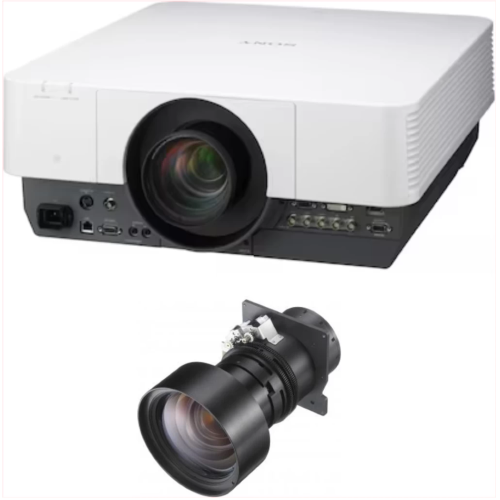

Video Projector + Telephoto Lens in Excellent Condition
VPLL-Z4011 Lens Specifications
| Feature | Value |
|---|---|
| Throw Ratio | 1.38:1 to 2.06:1 (WUXGA model) 1.40:1 to 2.10:1 (XGA model) |
| Zoom / Focus | Motorized / Motorized |
| Lens Shift | Vertical: +110% / -110% (WUXGA) +86% / -86% (XGA) Horizontal: ±57% (both models) |
| Aperture | f/1.7 to f/2.4 |
| Screen Size | 60″ to 600″ |
| Dimensions (W x H x D) | 157 x 150 x 265 mm |
| Weight | 3.7 kg |
VPL-Z4011 Projector Specifications
| Category | Detail |
|---|---|
| Projection System | 3LCD system |
| Display | 0.95″ (24.1 mm) 3LCD BrightEra™ panels, aspect ratio: 16:10 |
| Pixel Count | 6,912,000 (1920 x 1200 x 3 pixels) |
| Lens | Motorized/manual focus (depending on lens), motorized/manual zoom, motorized/manual lens shift |
| Light Source | Laser diode |
| Filter Cleaning/Replacement Interval (Max) | 20,000 hours (cleaning) |
| Screen Size | 40″ to 600″ (1.02 m to 15.24 m diagonal, depending on lens) |
| Light Output | High mode: 7000 lm Standard mode: 5600 lm |
| Color Light Output | High mode: 7000 lm Standard mode: 5600 lm |
| Contrast Ratio (Full White/Black) | 8000:1 |
| Scanning Frequency (Horizontal) | 14 kHz to 93 kHz |
| Scanning Frequency (Vertical) | 47 Hz to 93 Hz |
| Display Resolution (Computer Input) | WUXGA, 1920 x 1200 |
| Video Input Compatibility | NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/24p |
| Color System | NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60 |
| Keystone Correction (Max) | Vertical: ±30°, Horizontal: ±30° |
| OSD Languages | 24 languages including English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Farsi, Finnish, Indonesian, Hungarian, Greek |
| Input A (RGB/Y PB PR) | 5BNC (female) |
| Input B (mini D-Sub 15-pin) | RGB input: mini D-Sub 15-pin (female) |
| Input C (DVI-D) | DVI-D 24-pin (single link), HDCP supported |
| Input D (HDMI) | HDMI 19-pin, HDCP supported |
| Input E (Optional Adapter Slot) | Slot for optional adapter (digital interface BKM-PJ10) |
| S-Video Input | Mini DIN 4-pin |
| Video Input (BNC) | BNC connector |
| Monitor Output | Mini D-Sub 15-pin (female) |
| Remote (RS-232C) | D-sub 9-pin (female) |
| LAN | RJ-45, 10BASE-T/100BASE-TX |
| Control-S (Input) | Stereo mini jack, 5V DC plug-in power |
| Control-S (Output) | Stereo mini jack |
| Acoustic Noise (Standard Mode) | 33 dB |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 35% to 85% (non-condensing) |
| Storage Temperature | -10°C to +60°C |
| Storage Humidity | 20% to 80% (non-condensing) |
| Power Requirements | 100V to 240V, 5A to 2.1A, 50/60 Hz |
| Power Consumption (High Lamp Mode) | 497 W (100–120V AC), 476 W (220–240V AC) |
| Power Consumption (Standby Mode) | 0.1 W (100–120V AC, "Low" mode), 0.5 W (220–240V AC, "Low" mode) |
| Power Consumption (Network Standby Mode) | 12.2 W (LAN), 13.8 W (optional HDBaseT adapter), 13.8 W (all connected terminals, 100–120V AC) 8.4 W (LAN), 10 W (HDBaseT), 10 W (all connected, 220–240V AC) |
| Standby to Network Mode Time | Approx. 2 minutes |
| Heat Dissipation | 1696 BTU/h (100–120V AC), 1624 BTU/h (220–240V AC) |
| Dimensions (W x H x D) | Approx. 530 x 204 x 545 mm (excluding protrusions) |
| Weight | Approx. 22 kg |
| Included Accessories | Remote Commander RM-PJ27 |
| Optional Accessories | Projection lenses: VPLL-4008/Z4011/Z4015/Z4019/Z4025/Z4045/Z4007/ZM42/FM22/ZM102 Lens adapters: PK-F500LA1, PK-F500LA2FH |
