For Sale: Ob vehicle Alfa Cam OB18

Introduction

The OB Van is a state-of-the-art mobile broadcast unit designed to deliver high-quality live production for various events,

including sports, concerts, and corporate functions. Equipped with cutting-edge video, audio, and intercom systems, it

ensures seamless and professional coverage in any location.

Build Quality and Design
The OB Van was purpose-built as a mobile broadcast unit from the ground up, rather than being converted from an existing vehicle. Designed and manufactured by AlfaCam, it adheres to the highest industry standards, ensuring durability, reliability, and optimal performance in live production environments.

Operational Capabilities

- Live broadcasting for major events (sports, concerts, festivals, corporate events)

- Multi-camera production with seamless video switching

- High-quality audio mixing with 5.1 surround capabilities

- Comprehensive intercom and communication system for smooth coordination

Technical Specifications

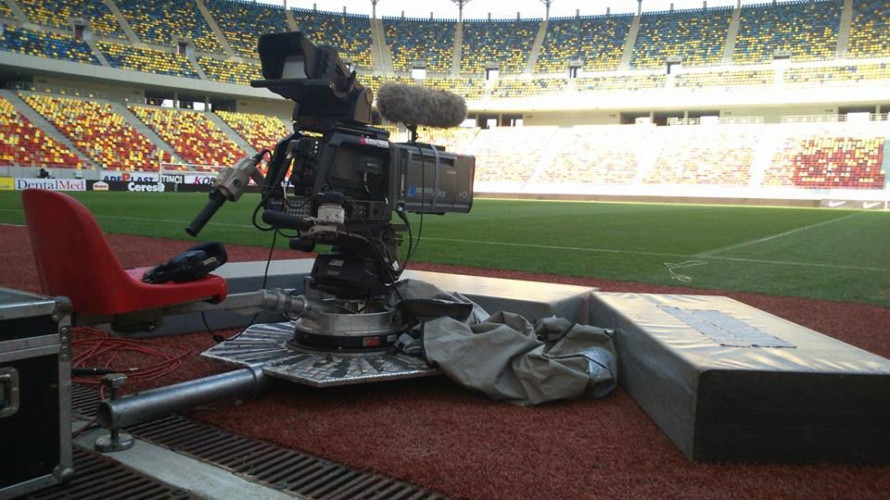

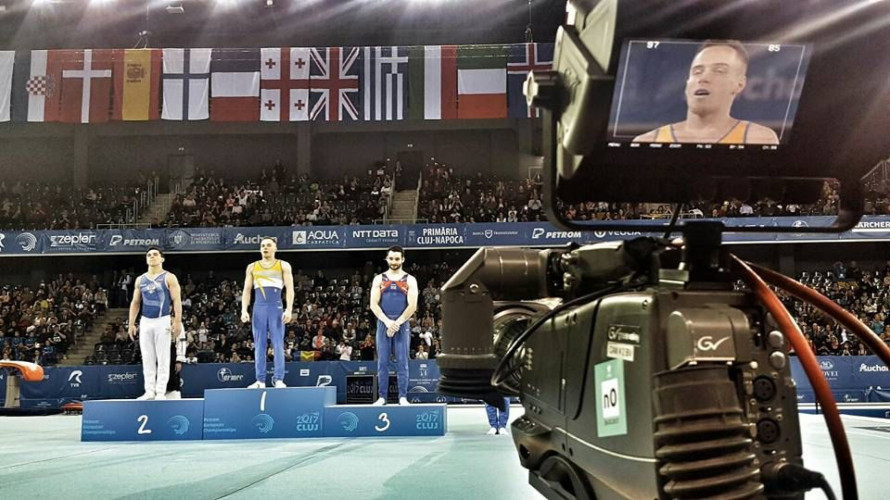

Camera System

- Capacity: Up to 24 wired cameras

- Model: GVG LDK 8000

- High-Speed Camera: GVG LDK 8300 (for slow-motion capture)

- HD Formats: 1080i / 1080psf / 720p (50Hz - 60Hz)

Video Processing

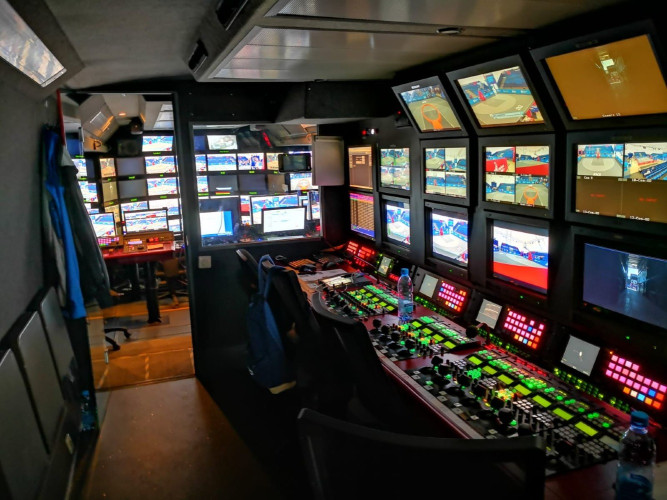

- Video Mixer: Kayak 400 HD/SD hybrid mixer (96 inputs / 48 outputs, 6 RAM recorders)

- Video Effects: GVG Kayak onboard (1 DPM per ME, 4-channel DPM on ME1)

- Control System: Virtual Studio Manager (VSM)

- Matrix Routing: Trinix digital routing switcher (SD/HD frame 128x160)

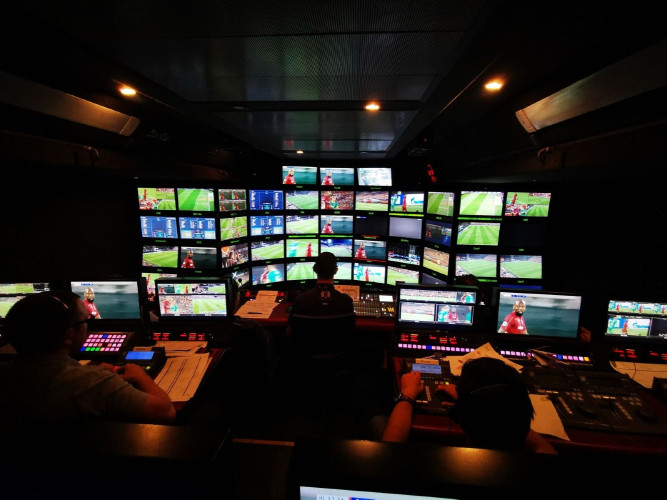

Monitoring System

- Production Monitors: 25 x Sony 17" HD

- Program/Preview Monitors: 2 x PGM/PVW HD-SDI CRT monitors (20" and 23")

- Vision Monitoring: 5 x Ikegami 17" / Tektronix WFM700

Recording System

- VTR Capacity: Up to 16 positions

- Disk Recorders: Rack space for 11 EVS XT / GVG K2 Dyno

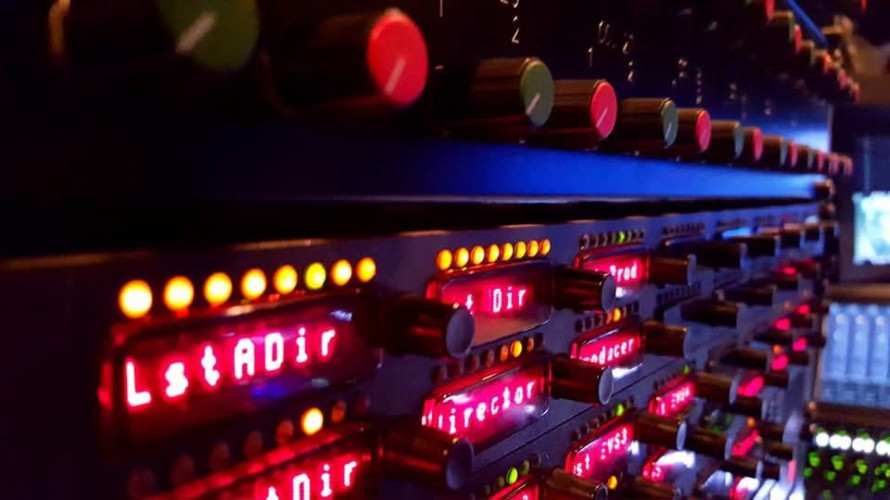

Intercom System

- Main System: Riedel Artist M 128 frame (96 ports, expandable to 1024x1024 matrix)

- Wireless Communication: Motorola HF base station & radios, antennas and Clark mast systems

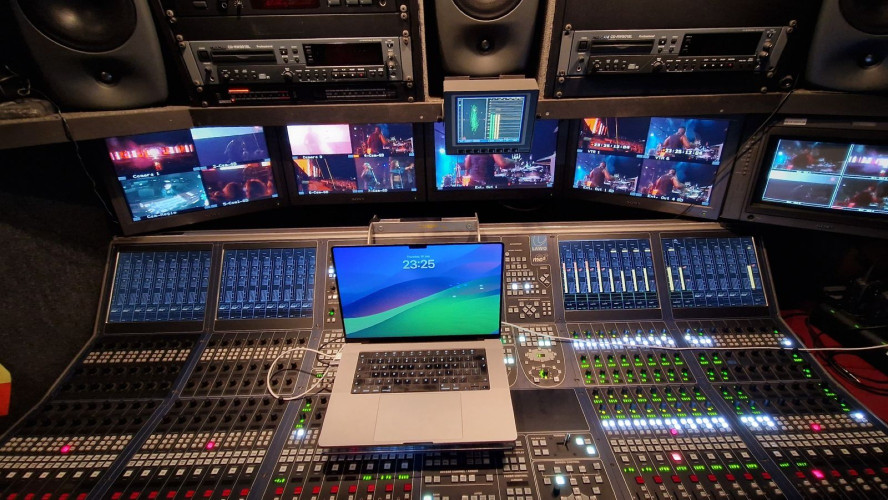

Audio System

- Mixing Desk: Lawo MCÇ66 (32 + 8 faders, up to 6 banks, 144 Ch DSP, 110 Mic/Line Inputs)

- Audio Monitoring: 5.1 Genelec monitors (8030-8020 surround system)

- Audio Matrix: Lawo Navo 73 audio router (MADI, AES 75, AES 110, Analog - Total: 792x792 channels)

- Outboard Gear: TC Electronics 6000 mastering & reverb, Icon remote

OB Van Equipament

- 13 x LDK 8000 TRIAX + accessories

- 2 x LDK 8300 SSM SMPTE + accessories

- 1 x LDK 8000 + wireless Gigawave 2.4GHz + accessories

- 2 x Sony FCB Minicam

Lenses

-3 x Canon XJ75x9.3B IE/IESD-BB

-2 x Canon XJ72x9.3B IE/IESD-BB

-1 x Canon XJ60x9 B IE/IESD-BB

-1 x Canon HJ22x7.3B

-4 x LENS CANON HJ21ex7.8B

-3 x LENS CANON HJ11x4.7B

Tripods & Dollies

- 6 x OB 2000 Sachtler Heavy Duty Tripod

- 6 x S 90 Sachtler Heavy Duty Head

- 1 x S 25 SACHTLER tripod

- 3 x S 20 Sachtler Tripod

- 2 x S 18 SACHTLER tripod

Recording System

- EVS System: 4 x EVS XT 2

Audio Equipment

- 10 x Audio-Technica AT897 Microphones

- 4 x Sennheiser 835 Microphones

- 10 x Microphone Stands

- 10 x Rycote Zeppelin Windshields

Cabling

- Triax Drum Cables

- SMPTE Drum Cables

- XLR Drum Cables

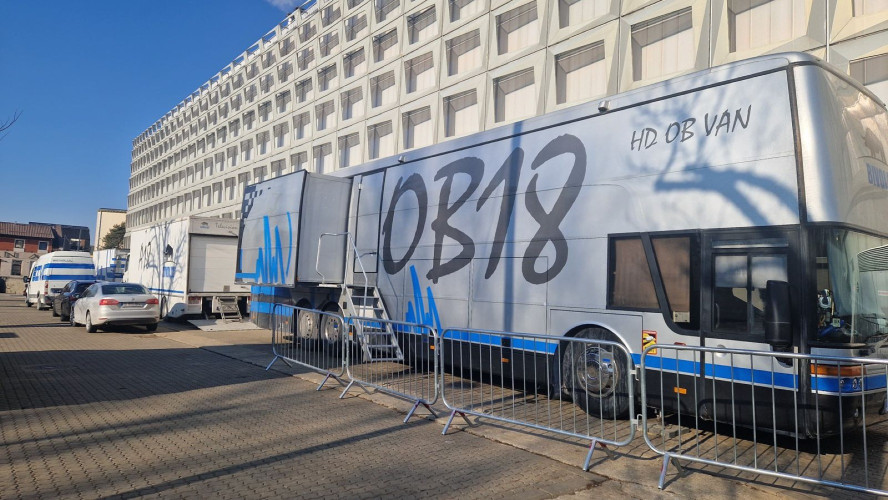

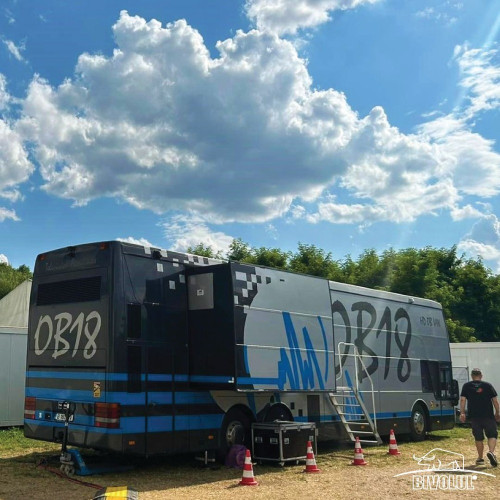

Vehicle Information

- Model: VANHOOL ASTROMEGA 927 SD3 (2004)

- Engine: MAN D 2876 LOH02

- Power: 338 kW / 460 HP

- Mileage: 300.000 km
