For Sale: Miranda Densite with 10x DSK3901 keyers (3G and HD licensed)

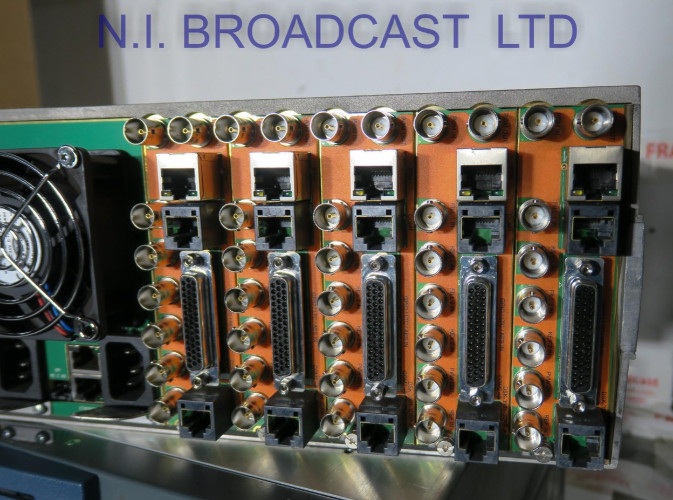

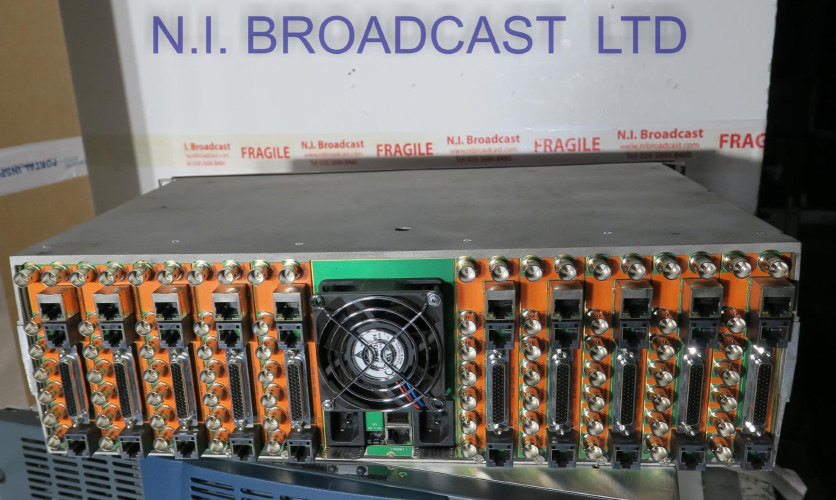

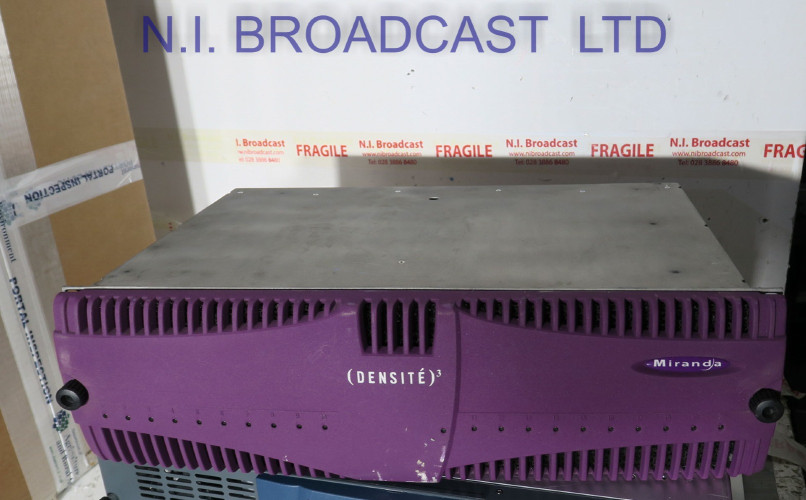

Miranda Densite frame with 10x dsk-3901  3G / HD  downstream keyers

All cards are 3G  and HD licesned

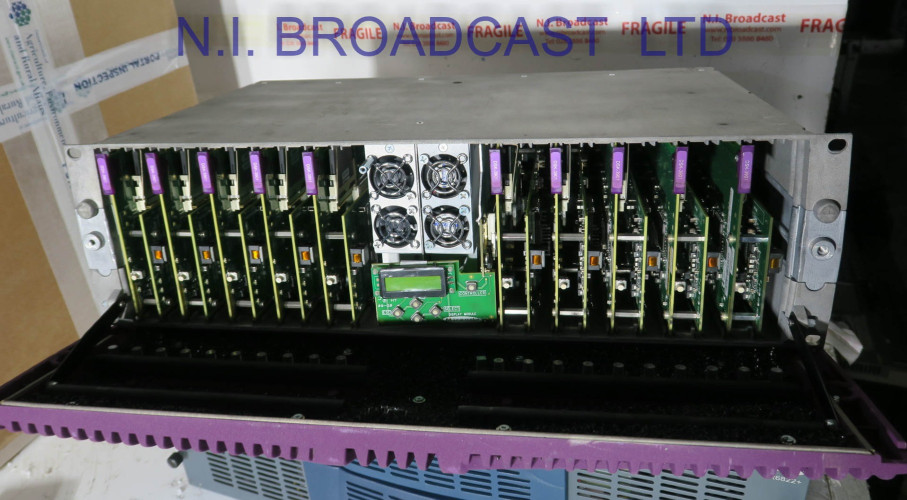

Densite frame has 2x power supplies (1 for redundancy) and 1x frame controller also

from miranda (grass valley)

The Densité DSK-3901is a low cost, modular downstream keyer, with two independent pairs of fill and key inputs. This 3G/HD/SD keyer is ideal for inserting two external character generator feeds over program video. Up to 10 channels of keying can be housed in a single 3 RU Densité 3 frame. An integrated audio mixer provides eight channel voiceovers, as well as audio clip storage and playout. Background audio is automatically ducked during voiceovers. Audio can be accepted as embedded audio or as four external AES inputs. The audio mixer features separate processing for the program and the preview chains. A dedicated full preview channel offers an operator the option to feed the same signal to the program and preview chains, or use a different signal for the preview chain using the Fill-2 input. The DSK-3901 can be manually controlled by the Branding Panel, and under automation using the widely adopted Oxtel protocol.

Downstream keyer with dual, independent fill and key inputs • Independent preview output • Module is housed in Densité 3 frame, with up to 10 cards (channels) per frame • Supports 3G/HD/SD (1080p, 1080i, 720p, 576i, 480i, 59.94 Hz and 50 Hz) • Uses widely adopted Oxtel automation protocol (Ethernet, RS-232/422) • Manual control options, include Branding Panel, Xpanel GUI and iControl PC-based control • Eight channel voiceover option available Robust design • Compact flash memory for O/S • Rugged Linux architecture • Densité 3 frame offers redundant, hot-swappable power supplies • Mechanical bypass of program input • Easy diagnostics via Densité 3 front panel and iControl monitoring and control system Comprehensive Densité range • DSK-3901 can be easily combined with other Densité modules in the 3 RU frame, including routers, DAs, converters and monitoring
